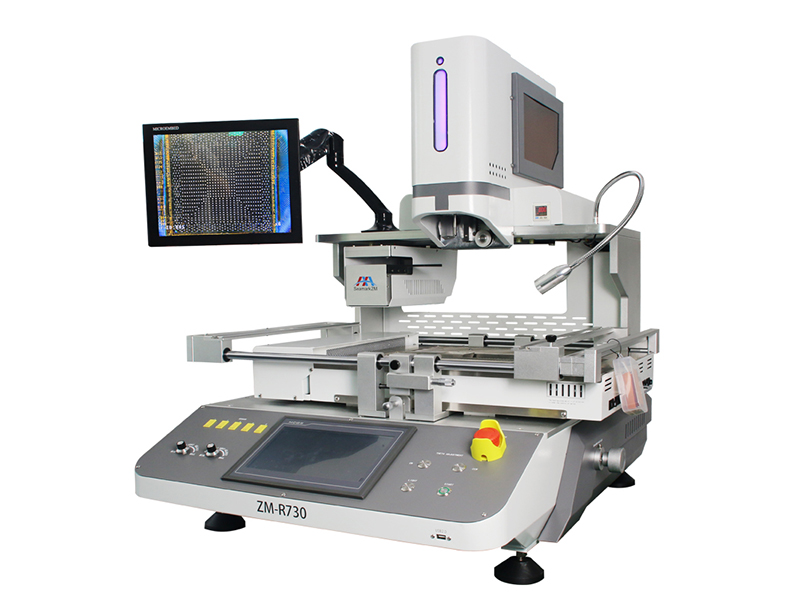

- ZM-R730A Rework System – for Large Size PCB
- Stable and Uniform Hot Air Heating System
- Lower Heater Adjustable(Height Moving Range 3CM)
- Ceramic honeycomb Infrared Preheater(Left/ Right Moving Range 30 CM)
- High-Precision PID Temperature Control System(5 K-type sensor, 10 temperature zone control )
- High-Precision Optical Alignment System with Industrial High-Definition CCD (2MP)
- High-Resolution Touch Screen HMI Interface
- Automatic Placement, Desoldering
- Built-In Pressure Testing Device To Protects The PCB
- Real-Time Temperature Monitoring and Over-Temperature Protection.
- Emergency Stop Function
- Add a side camera, more clearly observe the rework process(Optional)
Application
Suitable for Normal SMD(BGA, QFP etc.) & Micro-SMD Components Repair, Max. 80mm x 80mm, Min. 0.5mm * 0.5mm IC. PCB motherboard support Max. 620mm x 520mm
ZM-R730A Rework System – for Large Size PCB
ZM-R730A Rework System – for Large Size PCB
CERE INFORMATII DESPRE ACEST PRODUS
SKU: ZM-R720
Categorie: Statii BGA Rework
Trimite la:
- Clic pentru imprimare(Se deschide în fereastră nouă)
- Clic pentru a trimite prin email unui prieten(Se deschide în fereastră nouă)
- Dă clic pentru partajare pe WhatsApp(Se deschide în fereastră nouă)
- Dă clic aici pentru a partaja pe Skype(Se deschide în fereastră nouă)
- Dă clic pentru a partaja pe Facebook(Se deschide în fereastră nouă)
- Dă clic pentru a partaja pe LinkedIn(Se deschide în fereastră nouă)
- Dă clic pentru a partaja pe Twitter(Se deschide în fereastră nouă)
Greutate | 71 kg |
---|---|
Dimensiuni | 64 × 63 × 92 cm |
Operation Mode | Automatic / Optical /Touch Panel |
Voltage/Power | AC220V±10%(110V Optional), 50/60HZ / Top: 1200W, Bottom: 1200W, IR: |
Heating Mode | Top/Bottom Nozzle Hot Air, Bottom Plates Infrared |
Temperature Precision | 2-3 ℃ (1 Sensor Port) |
Preheat Zone | 280×380mm |
Optical Alignment Precision | 0.01MM |
CCD Magnification | 5X~50X |
LCD Display | 17〞1080P FHD LCD Display |
For PCB Size/Chip Size | PCB Size: 415*370MM~6*6MM / Chip Size: 0.6*0.6~40*40M |
Standard Wooden Packing | Packing Size: L750*W700*H950 (MM) / G.W: 120KG |
